Model 3D
Advanced Control Features and User Comfort

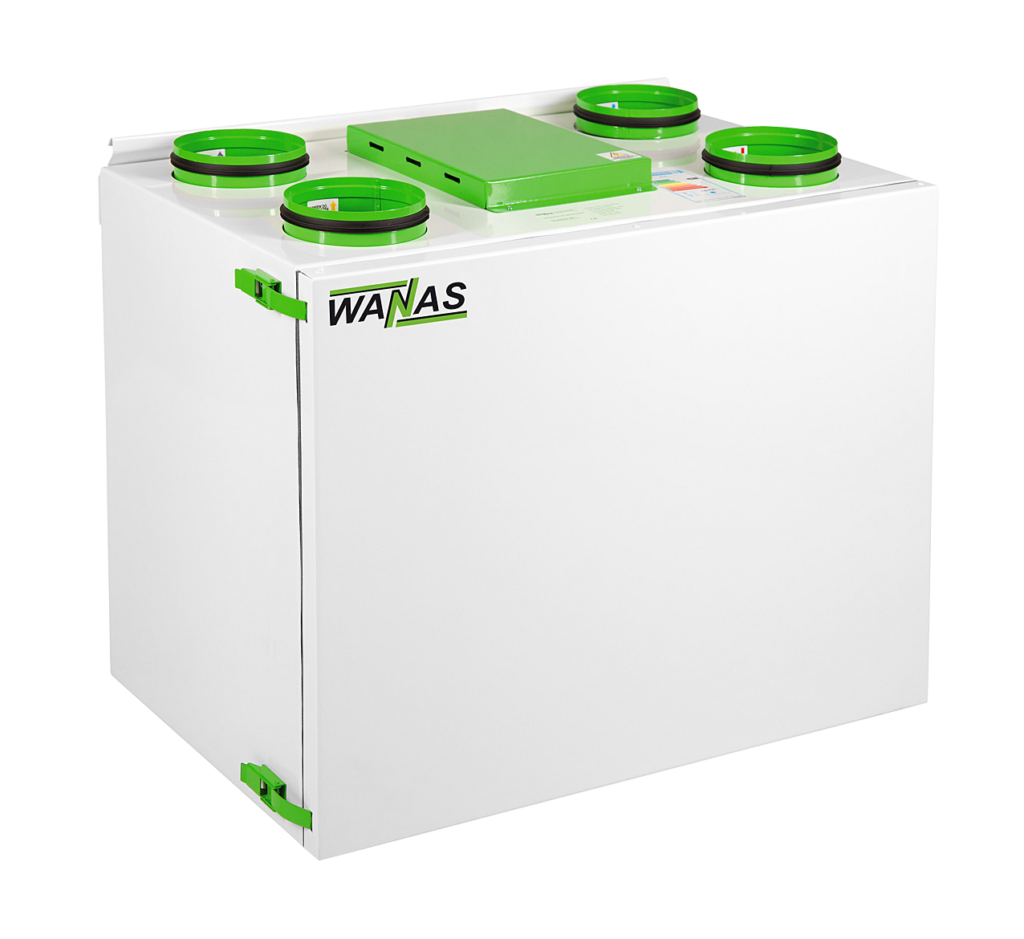

The WANAS Classic 550 V 3 air handling unit is a compact ventilation system with a vertical duct arrangement, designed for ventilating single-family homes and commercial buildings. It features very low energy consumption, quiet operation, high thermal efficiency, and easy handling. The robust, non-combustible construction and the aluminum cross-counterflow heat exchanger ensure durability and high efficiency. The air handling unit is intended for spaces up to 320 m² and comes standard with a touchscreen controller and a pre-heater. Additionally, it can be expanded with the Sinum unit, allowing you to control both your air handling unit and the entire home from a single wall-mounted panel or via a mobile app.
High-Efficiency Heat Exchanger
WANAS air handling units equipped with a high-efficiency aluminum heat exchanger are designed for those seeking an effective and durable mechanical ventilation system with heat recovery. The cross-counterflow design allows for optimal utilization of thermal energy, which translates into a reduced need for additional heating of the supply air.
Modern Control Interface
The unit comes with the modern Display V2 wall-mounted touchscreen controller. The 5.0-inch panel, made of elegant glass, stands out for its intuitive operation and perfectly complements any interior style, combining functionality with aesthetic design.
Intelligent Airflow Management
The air handling unit is equipped with a BYPASS system that manages airflow, enabling efficient cooling of rooms during the summer by bypassing the heat recovery process. This allows the system to direct cooler outdoor air directly into the building, helping to naturally lower indoor temperatures during cool nights or less hot days, without the need for air conditioning.
The automatic bypass operates maintenance-free – the system independently evaluates weather conditions and adjusts its mode of operation to ensure user comfort while minimizing energy consumption.
Thanks to integration with the WANAS CLOUD app, users can configure the bypass, activate or deactivate the function at any time, monitor supply and exhaust air temperatures, and adjust system parameters according to individual preferences.
Smart Heating
The WANAS Classic 550 V 3 air handling unit is equipped with an intelligent modulating heater that automatically adjusts its heating power to the current operating conditions of the ventilation system. With dynamic regulation, the unit ensures an optimal supply air temperature, minimizing energy consumption and eliminating the risk of overheating or overcooling indoor spaces.
Modbus RTU
MODBUS RTU is a reliable serial communication protocol that enables data exchange between the air handling unit and external control systems. Its implementation allows for precise, automated, and remote ventilation management, eliminating the need for manual configuration.
More Possibilities for You
Wireless Humidity Control

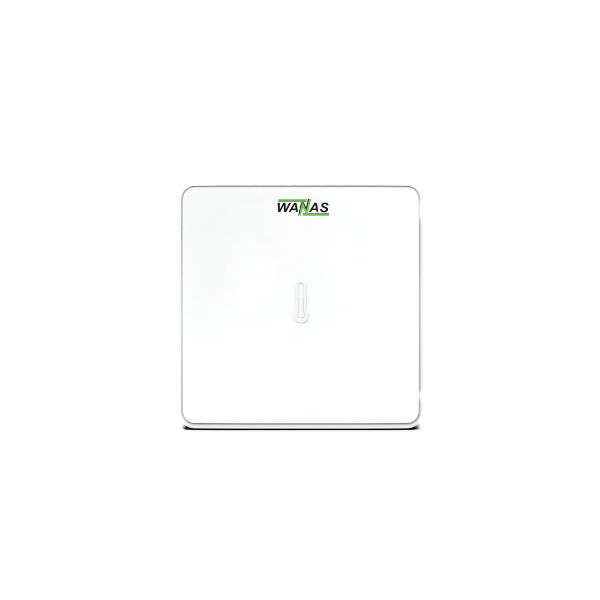

The maxiControl sensor is a modern, wireless device for measuring humidity and temperature within a room. It enables automatic control of the humidifier’s operation and adjusts the air handling unit’s mode based on the humidity level. Thanks to radio communication with the Display V2 controller, the sensor ensures stable and precise performance, even at an exceptionally large range. Battery power eliminates the need for electrical wiring, and its compact size and classic design allow maxiControl to discreetly blend into any interior.
Always in Control of the Air

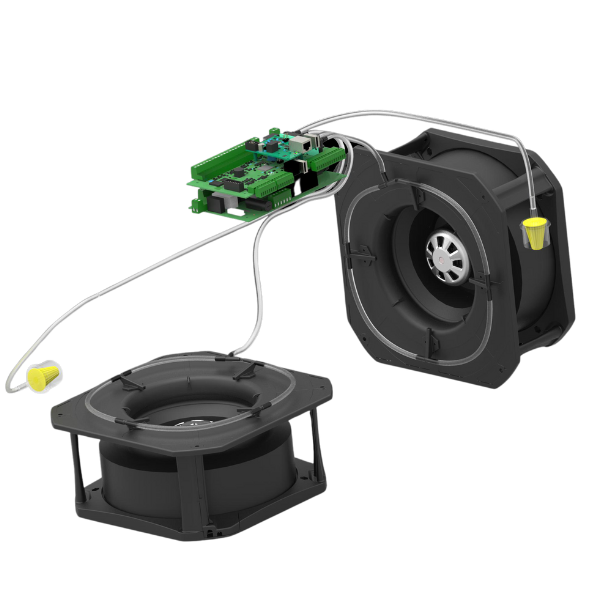

The XF system ensures precise balancing of airflow in the ventilation system. It monitors and automatically adjusts the operation of the supply and exhaust fans in real time to maintain balanced airflow throughout the system. Additionally, the system operates autonomously, adapting to changes in system resistance, such as filter contamination or changes in system settings.
Control Your Device Anywhere You Are
The WANAS Mobile Control W-15 and WANAS Mobile Control W-19 Wi-Fi modules are solutions that allow remote control of WANAS air handling units via a smartphone, tablet, or computer. These modules enable real-time management of the air handling unit’s operation – changing modes, adjusting ventilation intensity, and setting operation schedules.
Entalpic Heat Exchanger
The WANAS Classic 550 V 3 air handling unit can be equipped with an enthalpic heat exchanger, which not only recovers heat but also recovers moisture from the exhaust air. This allows the ventilation system to minimize energy losses while maintaining an optimal humidity level in the rooms, which is particularly important during the heating season when the air becomes dry. Choosing an enthalpic heat exchanger is an ideal solution for those who value comfort, healthy air, and energy efficiency.

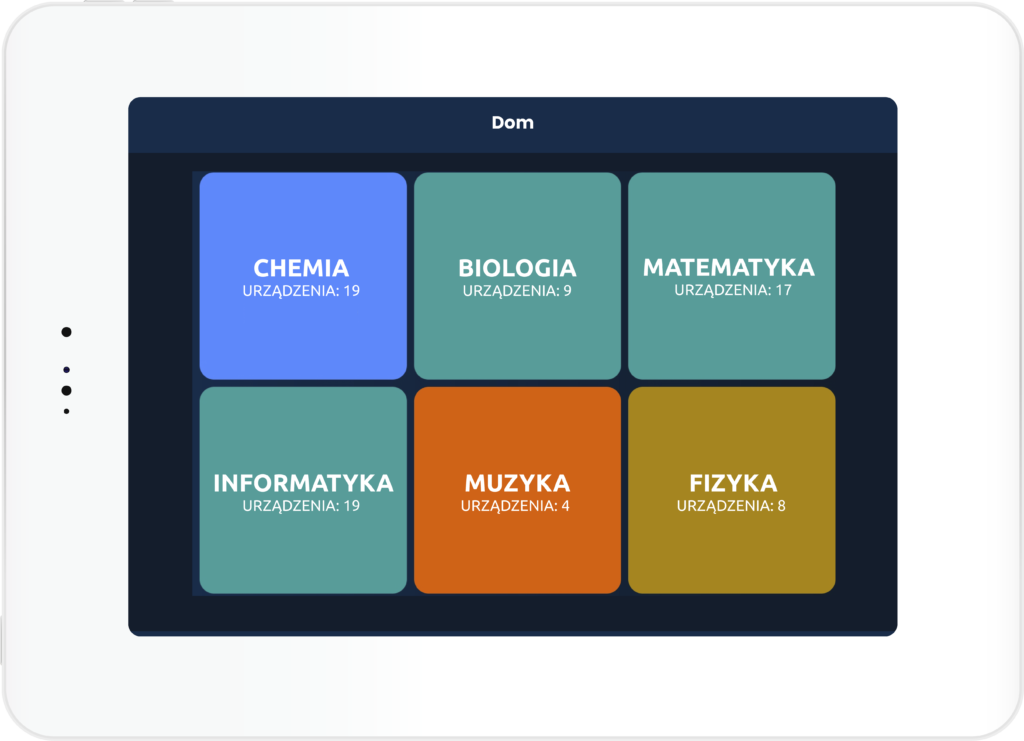

Your Home, Your Rules – Smart Home with the Sinum Module
Instead of the internet module, you can install the Sinum unit and control your air handling unit and your entire home from a single wall-mounted panel or via a mobile app.
Zoning Ventilation
Zoning ventilation is an intelligent solution that adjusts the system’s intensity to the current needs of the users, ensuring comfort and energy savings. The system allows the building to be divided into zones – day and night – so that ventilation operates only where it is needed. Automatic air supply regulation, the ability to operate at lower fan speeds, and time schedules significantly reduce energy consumption and heat losses. An additional benefit is quiet operation and reduced air drying during the heating season.
Zainteresował Cię produkt?
Contact Us, and Learn How to Place an Order.
We will also ensure that the product is a perfect fit for your needs.
Rozbuduj swój rekuperator
Spraw, by Twój rekuperator dawał Ci jeszcze więcej komfortu. Zobacz dostępne akcesoria.
Dane techniczne
Class JZE
AJZE for temperate climate
-38,16kWh/(m²/rok)
JZE for a cold climate zone
-74,86kWh/(m²/rok)
JZE for a warm climate zone
-14,51kWh/(m²/rok)
Maximum airflow rate (przy 100 Pa)
595m³/h
Acoustic power (wg UE 1254/2014)
38/48dBA
Static pressure (przy 200 m³/h)
166Pa
Energy consumption
26-265W
Pre-heater power output - SMART HEATER
500W
Power supply
230/50V/Hz
Diameter of the connections
200mm
Max. efficiency according to UE 1254/2014, dT=13ºC, 200m3/h, SWM
90,7%
Efficiency according to UE 1254/2014, dT=13°C
81,5%

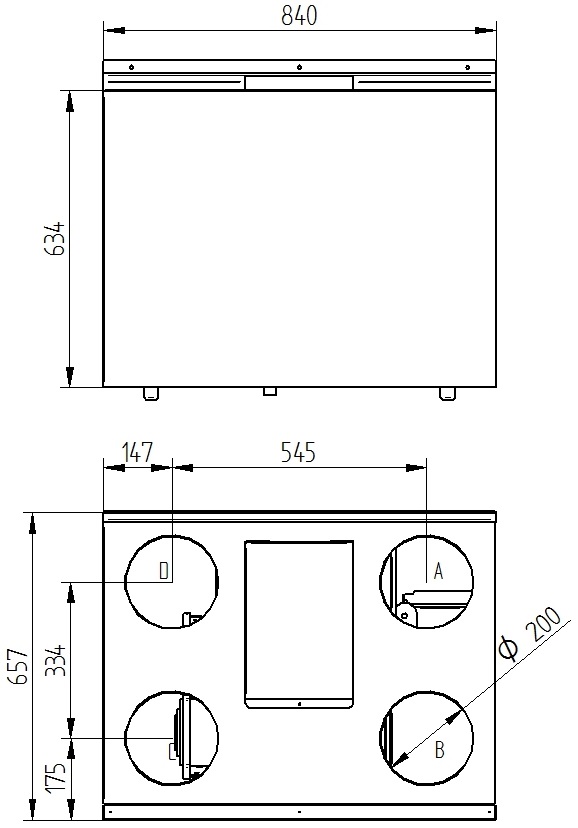

Height
634mm
Width
840mm
Depth
657mm
Weight
71,3kg
Filter Class
ISO COARSE 75% + ePM 10 50 %Wymiary
