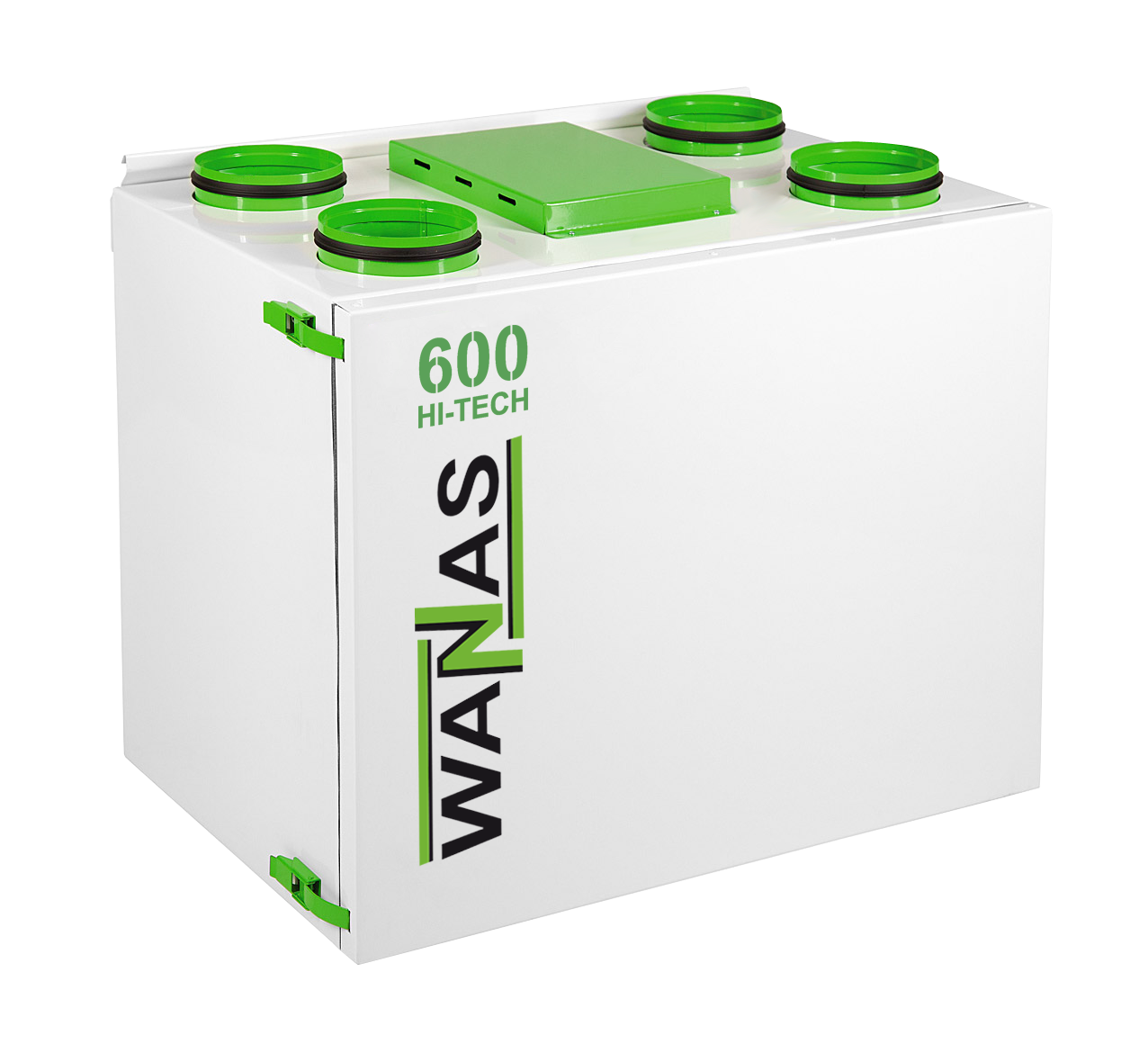

WANAS 600 V HI-TECH
The WANAS Classic 600 V HI-TECH heat recovery unit is a modern ventilation unit characterized by quiet operation, low energy consumption, and intelligent control. Thanks to the use of advanced technologies, it ensures comfortable and healthy air in your home while guaranteeing savings and operational efficiency.
600 m3/h
270 m2
A
40 dBA
23-315 W
100 Pa
500 W
230/50 V/Hz
ISO COARSE 75% + ePM 10 50%
3D model
Advanced control functions and user comfort
The WANAS 600 V HI-TECH heat recovery unit is a compact ventilation unit with vertical spigots, designed for single-family homes, offices, commercial buildings, and retail outlets. It boasts very low energy consumption, quiet operation, high thermal efficiency, and ease of use. Its robust, non-flammable construction and enthalpy heat exchanger ensure durability and high efficiency. The unit is designed to ventilate rooms up to 270 m². It comes standard with a touchscreen controller and a preheater. It also comes standard with a preheater and a Wi-Fi internet module.
Enthalpy exchanger
The WANAS 600 V HI-TECH heat recovery unit is equipped with an enthalpy exchanger, which, in addition to heat recovery, also recovers moisture from exhaust air. This not only minimizes energy losses but also prevents excessive room dryness, which is particularly important during the heating season. The polymer membrane used in the exchanger allows for the transfer of moisture between air streams while preventing the transfer of gases, odors, and pollutants. The exchanger recovers latent heat (related to humidity) and sensible heat (related to temperature). Choosing an enthalpy exchanger is the ideal solution for those who value comfort and healthy air but lack space for a humidifier.
Modern controls
The price includes a modern, touchscreen Display V2 wall controller. The 5.0-inch panel, made of elegant glass, stands out for its intuitive operation and perfectly complements any interior style, combining functionality with aesthetic design. The panel is also equipped with radio communication, allowing you to connect a MaxiControl or RCO2 Control humidity sensor. From the controller panel, you can control, among other things, the ground heat exchanger (GWC), humidifier, cooler, water heater, or freon heater. Combined with the heat recovery unit’s motherboard, the Display V2 is the most feature-rich controller on the market and is included as standard with the heat recovery unit.
The air is always under control
The XF system ensures precise airflow balancing in the ventilation system. It monitors and automatically adjusts the operation of supply and exhaust fans in real time to maintain airflow balance within the system. Four measurement points are installed on the fan, ensuring highly accurate airflow measurement. Our system stands out from the competition by displaying airflow in m³/h in real time.
Painted interior
The interior of the HI-TECH series heat recovery units is coated with a high-quality powder coating, which not only enhances the protection of the internal components but also improves the hygiene of the entire unit. This technology makes the unit even more durable, resistant to external factors, and easier to clean.
This solution further distinguishes the HI-TECH series – combining reliability with a flawless finish to ensure maximum comfort and safety for users.
Intelligent BYPASS in the recuperator
The air handling unit is equipped with a bypass, which manages airflow, allowing for cooling of rooms in the summer by bypassing the heat recovery process. This allows the system to direct cooler outside air directly into the building, naturally lowering room temperatures on cool nights or less hot days. The automatic bypass operates maintenance-free – the system independently assesses weather conditions and adjusts its operating mode to ensure user comfort and minimize energy consumption. What distinguishes our solution from others on the market is that we can automatically set a higher airflow when the bypass is opened, quickly improving comfort in the building. For example, the unit operates at minimum airflow, and when the outside temperature is cooler, the bypass opens, increasing the unit’s efficiency by 100%.
SMART HEATER
The WANAS 600 V HI-TECH heat recovery unit is equipped with a smart heater that automatically adjusts its heating power to current conditions, such as outside temperature and airflow. This automatic regulation ensures optimal heat exchanger protection. The unit only uses a 500W heater, which is still its power consumption even in extremely unfavorable outdoor conditions. During most operating hours, the power will be much lower.
Modbus RTU
MODBUS RTU is a reliable, universal serial communication protocol that enables data exchange between the heat recovery unit and external control systems. Its use allows for integration of our device with any intelligent external building management systems, such as Sinum, Lexon, Grenton, etc. We can control the heat recovery unit from an external system.
Control your device wherever you are
The WANAS Mobile Control W-15 and WANAS Mobile Control W-25 Wi-Fi internet modules enable remote control of WANAS ventilators using a smartphone, tablet, or computer. These modules allow for ongoing management of the ventilator’s operation, including changing operating modes, adjusting ventilation intensity, and setting operating schedules. These modules allow you to view the device’s operating history and receive email alerts, such as when filters need to be replaced.
More opportunities for you
Your home, your rules – smart home with the sinum module
Instead of an internet module, you can install a Sinum control unit and control your heat recovery unit and your entire home from a single wall-mounted panel or a smartphone app. The Sinum control unit allows you to create a so-called smart building, allowing you to manage lighting, energy, heating, and ventilation from a single platform. This way, your home will function according to the rules you establish. Of course, you can change them at any time, as the system is so simple that you can do it from your mobile phone.
Wireless humidity control
The maxiControl sensor is a modern, wireless device for measuring humidity and temperature in a room. It allows automatic control of the Umecto humidifier and adjustment of the ventilation unit’s operating mode depending on the humidity level. By installing the sensor in the bathroom, we can automatically trigger the unit to run at speed three if the expected humidity level is exceeded, drying the room faster. Thanks to radio communication with the Display V2 controller, the sensor can be installed at any time and in any location without the need for cables. Its compact dimensions and classic design allow the maxiControl to blend discreetly into any interior.
Zoned ventilation – comfort where you need it
V2-controlled heat recovery units are equipped with a zone ventilation management system as standard. Zone ventilation adjusts the intensity of operation to current user needs, ensuring comfort and energy savings. The system allows the building to be divided into day and night zones, ensuring ventilation operates only where needed. Automatic airflow regulation (using RCO2Control sensors), the ability to operate at lower unit speeds, and time schedules significantly reduce energy consumption and heat loss. Additional benefits include quiet operation and reduced air dryness during the heating season.
CO2 Always under control
By installing a CO2Control sensor in your home, you’ll always have the right level of carbon dioxide. The sensor wirelessly connects to the V2 controller and, when needed, turns the unit on to the appropriate speed to ensure maximum comfort for the user. Using CO2Control sensors, you can implement advanced zone ventilation based on CO2 measured in the room. Your heat recovery unit will increase its efficiency when needed, and when it doesn’t, the unit will operate at the lowest speed to ensure the system is as energy-efficient as possible.
Are you interested in the product?
Our team will answer all your questions and help you choose the right solution.
If you’re an installer, this is a great opportunity to expand your offerings with something unique.
Expand your recuperator
Make your heat recovery unit even more comfortable. See available accessories.
Products with similar performance
See more
Technical data
JZE class
AJZE for a temperate climate
-35,1kWh/(m²/year)
JZE for cold climates
-70,0kWh/(m²/year)
JZE for a warm climate
-12,5kWh/(m²/year)
Max flow rate value
600m³h
Sound power (according to EU 1254/2014)
40dBA
Available static pressure at 600 (m³/h)
100Pa
Energy consumption
23-315W
Preheater power - SMART HEATER
500W
Power supply
230/50V/Hz
Diameter of the nozzles
200mm
Max. efficiency according to EU 1254/2014, dT=13°C
90,5%
Height
727mm
Width
838mm
Depth
652mm
Weight
65kg
Filter class
ISO COARSE 75% + ePM 10 50%Dimensions
