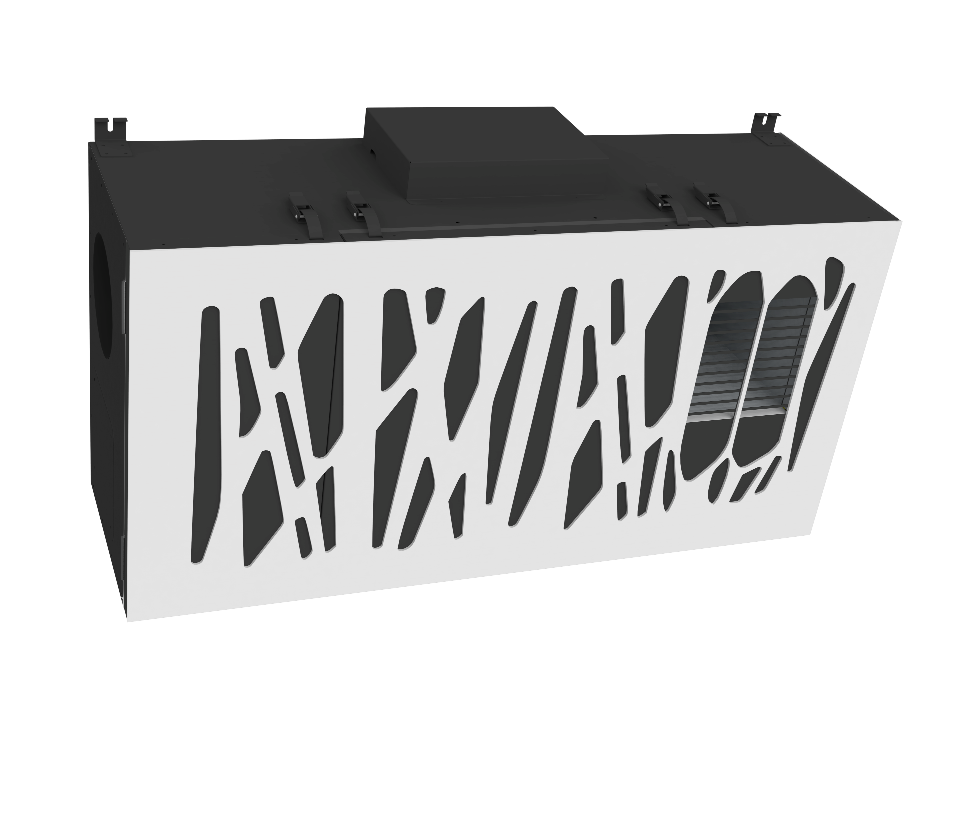

WANAS AIRCLASS 600 Decentralized Unit
The WANAS AIRCLASS 600 is a compact decentralized ventilation unit designed for schools, offices, and kindergartens. With an effective range of up to 12 meters, it can ventilate even large classrooms without the need for ventilation ductwork. It features very low energy consumption, quiet operation, high thermal efficiency, and ease of use. Designed by the WANAS engineering team and crafted with meticulous attention to detail, the unit is equipped with a range of excellent features to ensure a high level of user comfort. It comes standard with the "Display V2" weekly touchscreen controller. Additionally, a SMART module is available for purchase, enabling the control of all units installed in a facility—for example, allowing all units to be switched off at any time.
600 m3/h
218 m2
A
56 dBA
182 W
Pa 100
500 W
230/50 V/Hz
ISO COARSE 75% +ePM 10 50%
3D model
Advanced control functions and user comfort
The WANAS AIRCLASS 600 decentralized unit offers users modern and convenient ventilation system control. It comes standard with a touchscreen control panel featuring a clear interface for quick and intuitive operation. The unit can also be controlled remotely via the Internet, providing full control over the heat recovery system’s operation from anywhere. The system integrates with CO₂ and humidity sensors, automatically adjusting operating parameters to indoor conditions to ensure consistent comfort and air quality. Advanced algorithms protect the heat exchanger against freezing, while an automatic bypass enhances operational efficiency on warmer days.
Modern control system
The price of the unit includes the modern Display V2 wall-mounted touchscreen controller. Featuring a 5.0-inch screen made of elegant glass, the panel offers intuitive operation and blends perfectly with any interior style, combining functionality with aesthetic design.
Enthalpy exchanger
The WANAS AIRCLASS 600 decentralized unit is equipped with an enthalpy exchanger that, in addition to heat recovery, also recovers moisture from the exhaust air. As a result, the ventilation system not only minimizes energy loss but also maintains optimal indoor humidity levels—a feature particularly important during the heating season when the air tends to become dry. Choosing an enthalpy exchanger is an ideal solution for those who value comfort, healthy air, and energy efficiency.
BYPASS
The bypass is an advanced feature in ventilation systems that allows the heat exchanger to be bypassed under specific conditions. This solution enables fresh outdoor air to be introduced directly into the rooms without being heated by the exchanger, effectively cooling the interior naturally and in an energy-efficient manner.
The bypass function operates fully automatically, utilizing data from temperature and humidity sensors to ensure maximum comfort without requiring user intervention.
Heat wisely
An intelligent modulating heater is a modern solution for ventilation systems. Its primary purpose is to maintain a stable supply air temperature, even amidst changing outdoor conditions. This modulation prevents sudden temperature fluctuations, thereby enhancing user comfort. Furthermore, its modulating operation eliminates energy waste by precisely adjusting heating output to meet current demand.
Modbus RTU
Modbus RTU is a popular communication protocol widely used in building automation systems, including heat recovery units and ventilation systems. It enables reliable data exchange between devices, making it an ideal tool for integrating and managing various system components.
Smart home integration:
Modbus RTU allows the heat recovery unit to be connected to a smart home system, enabling centralized control of ventilation via a single app or control panel, thereby offering users full control and flexibility.
More possibilities for you
Your home, your rules – Smart home with an internet module
The WANAS Mobile Control W-15 and WANAS Mobile Control W-19 Wi-Fi modules are solutions that enable remote control of WANAS heat recovery units via smartphone, tablet, or computer. These modules allow for real-time management of the unit’s operation—such as changing operating modes, adjusting ventilation intensity, and setting schedules. Users also have access to key data—including airflow, temperature, humidity levels, and filter status—facilitating control over indoor air quality.
The modules send notifications regarding the need for filter replacement, system malfunctions, or required maintenance, thereby enhancing the system’s reliability.
Are you interested in the product?
Our team will answer all your questions and help you select the right solution.
If you are an installer, this is a great opportunity to enhance your offering with something unique.
Technical data
JZE class
AJZE for a temperate climate
-35,27kWh/(m²/year)
JZE for a cool climate
-70,47kWh/(m²/year)
JZE for a warm climate
-12,48kWh/(m²/year)
Max. flow rate (at 100 Pa)
545m³/h
Sound power level (according to EU 1254/2014)
56dBA
Available pressure (at m³/h)
100Pa
Energy consumption
182W
Pre-heater power – SMART HEATER
500W
Power supply
230/50V/Hz
Nozzle diameter
200mm
Efficiency according to EU 1254/2014, dT=13°C
75,7%
Height
411mm
Width
1311mm
Depth
770mm
Weight
71kg
Filter class
ISOCARSE 75%+ ePM 10 50%*At a water pressure of 0.3 MPa and factory settings.

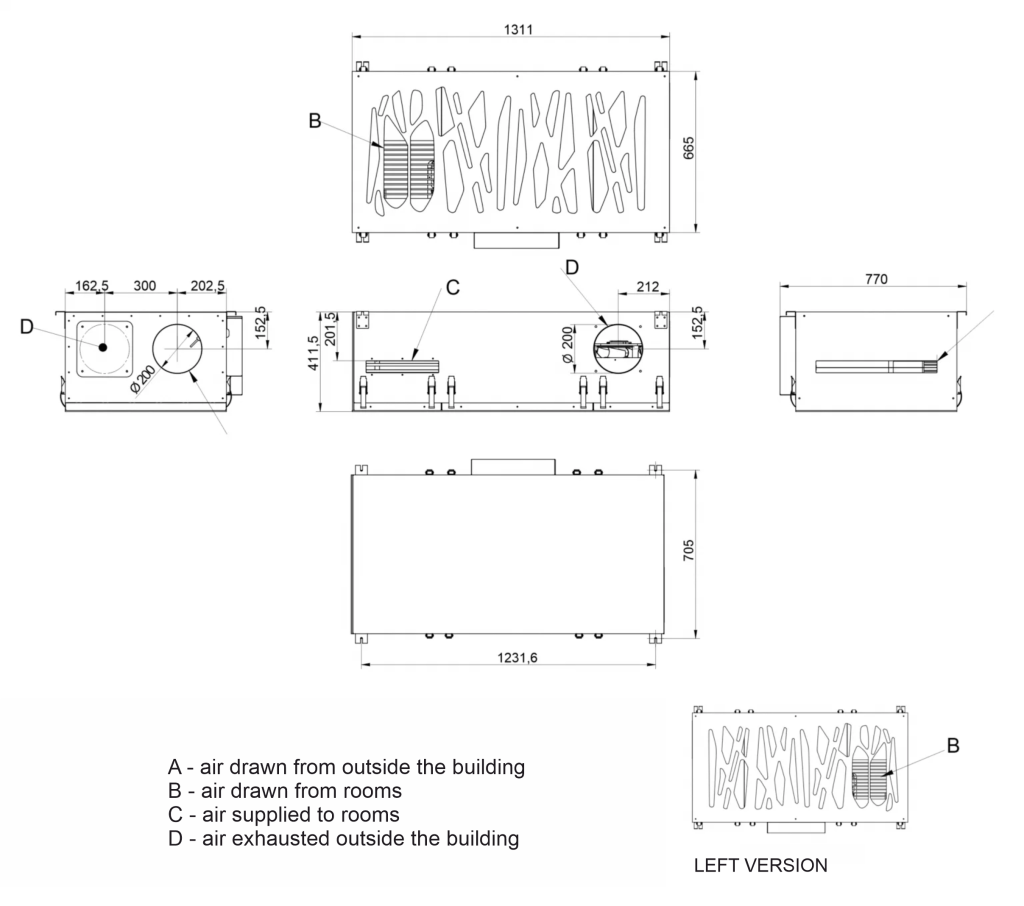

Dimensions
