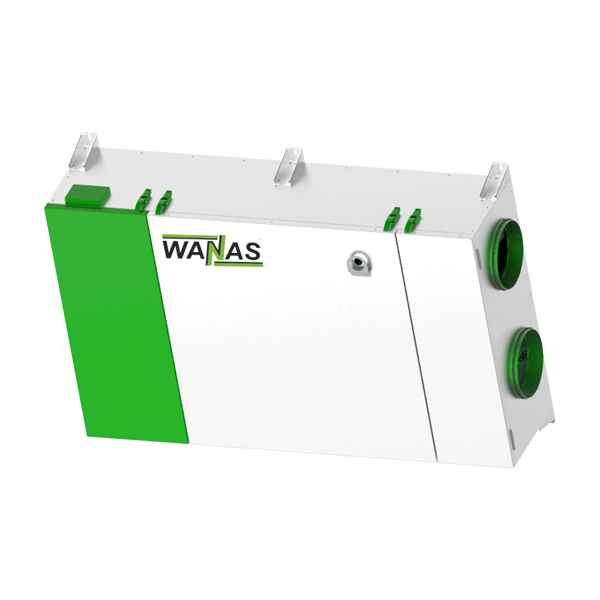

WANAS 845 XF
The WANAS Classic 845 XF heat recovery unit features a robust design, with a body made of high-quality materials, ensuring durability and resistance to damage. The unit features a horizontal housing, saving space and allowing for easy installation in a variety of buildings. Thanks to the innovative XF system and energy-saving fans, it provides efficient and comfortable ventilation, ideal for single-family homes and commercial buildings.
845 m3/h
380 m2
A+
38 dBA
18-336 W
100 Pa
2000 W
230/50 V/Hz
ISO COARSE 75% +ePM 10 50%
3D model
Advanced control functions and user comfort
The WANAS Classic 845 XF is a modern, ceiling-mounted ventilation unit designed for single-family homes, offices, and commercial and service facilities. Thanks to its well-thought-out design, the unit combines high efficiency with low energy consumption, ensuring a comfortable and healthy climate in large rooms.
The heat recovery unit is characterized by very quiet operation, high heat recovery efficiency, and ease of use. Made of robust, non-flammable materials, the housing ensures durability, and the plastic heat exchanger ensures efficient heat recovery.
The unit comes standard with a touchscreen controller and preheater, enabling precise management of system parameters.
The unit is designed for ventilation of rooms up to 380 m², making it ideal for larger residential buildings and commercial facilities.
Additionally, the unit can be equipped with a W25 internet module, allowing remote control and monitoring from anywhere in the world. The control unit also offers the possibility of integration with building management systems (BMS) via the Modbus protocol, which enables full automation and control of ventilation.
High-efficiency heat exchanger
WANAS heat recovery units, equipped with a high-efficiency plastic heat exchanger, are a solution designed for those seeking effective and durable mechanical ventilation with heat recovery. The cross-flow/counterflow design allows for optimal use of thermal energy, reducing the need for reheating the supply air. The heat exchanger in the unit is vertically positioned, allowing for gravity drainage of condensate to the drain pan. This ensures high thermal efficiency throughout the entire operating period and eliminates the need to “purge the exchanger” to remove water, as is the case with horizontal installations.
The air is always under control
The XF system ensures precise airflow balancing in the ventilation system. The system monitors and automatically adjusts the operation of supply and exhaust fans in real time to ensure airflow balance within the system. Four measuring nozzles are installed on each fan, ensuring a more precise measurement than with a single nozzle. What distinguishes the system is that the user can view the current measured airflow on both fans on the V2 controller.
Modern controls
The price includes a modern, touchscreen Display V2 wall controller. The 5.0-inch panel, made of elegant glass, stands out for its intuitive operation and perfectly complements any interior style, combining functionality with aesthetic design. The panel is also equipped with radio communication, allowing you to connect a MaxiControl or RCO2 Control humidity sensor. From the controller panel, you can control, among other things, the ground heat exchanger (GWC), humidifier, cooler, water heater, or freon heater. Combined with the heat recovery unit’s motherboard, the Display V2 is the most feature-rich controller on the market and is included as standard with the heat recovery unit.
Intelligent BYPASS in the recuperator
The ventilation unit is equipped with a bypass that manages airflow, allowing rooms to be cooled in the summer by bypassing the heat recovery process. This allows the system to direct cooler outside air directly into the building, naturally lowering room temperatures on cool nights or less hot days. The automatic bypass is maintenance-free – the system independently assesses weather conditions and adjusts its operating mode to ensure user comfort and minimize energy consumption.
SMART HEATER
The WANAS Classic 845 XF heat recovery unit is equipped with a smart heater that automatically adjusts its heating power to current conditions, such as outside temperature and airflow. This automatic regulation ensures optimal heat exchanger protection. The unit only uses a 2000W heater, which is still its power consumption even in extremely unfavorable outdoor conditions. During most operating hours, the power will be much lower.
Modbus RTU
MODBUS RTU is a reliable, universal serial communication protocol that enables data exchange between the heat recovery unit and external control systems. Its use allows for integration of our device with any intelligent external building management systems, such as Sinum, Lexon, Grenton, etc. We can control the heat recovery unit from an external system.
Explore expansion options
Your home, your rules – smart home with sinum module
Instead of an internet module, you can install a Sinum control unit and control your heat recovery unit and your entire home from a single wall-mounted panel or a smartphone app. The Sinum control unit allows you to create a so-called smart building, allowing you to manage lighting, energy, heating, and ventilation from a single platform. This way, your home will function according to the rules you establish. Of course, you can change them at any time, as the system is so simple that you can do it from your mobile phone.
Wireless humidity control
The maxiControl sensor is a modern, wireless device for measuring humidity and room temperature. It allows automatic control of the Umecto humidifier and adjustment of the ventilation unit’s operating mode depending on the humidity level. By installing the sensor in the bathroom, we can automatically trigger the unit to run at speed three if the expected humidity level is exceeded, drying the room faster. Thanks to radio communication with the Display V2 controller, the sensor can be installed at any time and in any location without the need for cables. Its compact dimensions and classic design allow the maxiControl to blend discreetly into any interior.
CO2 Always under control
By installing a CO2Control sensor in your home, you’ll always have the right level of carbon dioxide. The sensor wirelessly connects to the V2 controller and, when needed, turns the unit on to the appropriate speed to ensure maximum comfort for the user. Using CO2Control sensors, you can implement advanced zone ventilation based on CO2 measured in the room. Your heat recovery unit will increase its efficiency when needed, and when it doesn’t, the unit will operate at the lowest speed to ensure the system is as energy-efficient as possible.
Control your device wherever you are
WANAS Mobile Control W-25 internet modules are solutions that enable remote control of WANAS heat recovery units using a smartphone, tablet, or computer. These modules allow for ongoing management of the unit’s operation, including changing operating modes, adjusting ventilation intensity, and setting operating schedules. These modules allow you to view the unit’s operating history and receive email alerts, such as when filters need to be replaced.
Zoned ventilation – comfort where you need it
V2-controlled heat recovery units are equipped with a zone ventilation management system as standard. Zone ventilation adjusts the intensity of operation to current user needs, ensuring comfort and energy savings. The system allows the building to be divided into day and night zones, ensuring ventilation operates only where needed. Automatic airflow regulation (using RCO2Control sensors), the ability to operate at lower unit speeds, and time schedules significantly reduce energy consumption and heat loss. Additional benefits include quiet operation and reduced air dryness during the heating season.
Are you interested in the product?
Contact us to find out how to place an order.
We will also make sure the product is a perfect fit for your situation.
Expand your recuperator
Make your heat recovery unit even more comfortable. See available accessories.
Technical data
JZE class*
A+JZE for a temperate climate
-39,5kWh/(m²/year)
JZE for cold climates
-77,2kWh/(m²/year)
JZE for a warm climate
-15,3kWh/(m²/year)
Max flow rate value
845m³/h
Sound power (gear I)
38dBA
Available static pressure at 845 (m³/h)
100Pa
Energy consumption
18-336W
Preheater power - SMART HEATER
2000W
Power supply
230/50V/Hz
Diameter of the nozzles
250mm
Max efficiency according to EU 1254/2014, dT=13°C, SWM
92%
Height
991mm
Width
1667mm
Depth
407mm
Weight
116kg
Filter class
ISO COARSE 75% +ePM 10 50%*using local control
Dimensions
