Through connection 6xØ75 +160
Through connection 6xØ75+160
Material
galvanized steel
Inlet
82,8x250
Connection
6xØ75 +Ø160
Height/Width/Length
83x250x320
About product
Technical data
Ask about the product
About product
Technical data
Ask about the product
Simplicity and speed of installation

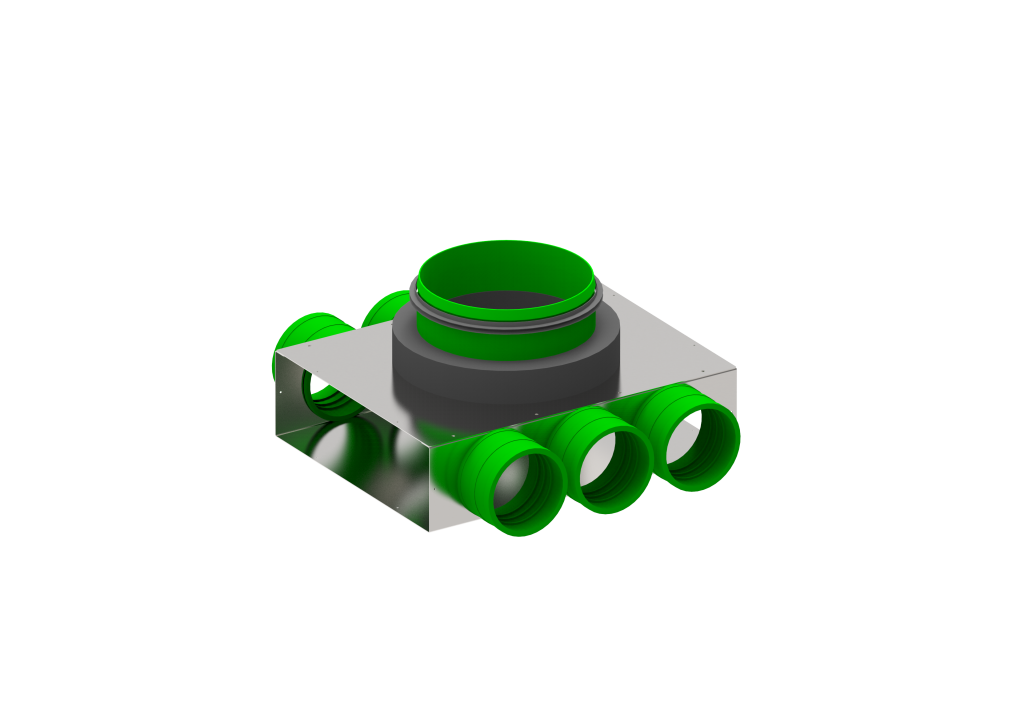

This high-quality inlet box is made of 0.7 mm thick galvanized steel, ensuring durability and corrosion resistance. The product is designed for easy and secure connection with other Wanas Steel system components, ensuring stable and reliable connections.
Product features:
- Material: 0.7 mm galvanized steel – durable and corrosion-resistant
- Connector dimensions: 6 x Ø75 mm + Ø160 mm connection
- Seal: Rubber connectors with three lips ensure a tight seal
- The connector is made of a material with sound-absorbing properties and a ring made of a synthetic rubber mat eliminate thermal breaks and further improve the acoustics of the entire system.
Application:
Connecting ducts in ventilation systems, compatible with Wanas Steel components. The intake box combines functionality with high-quality workmanship, ensuring durable, tight, and quiet connections in modern ventilation systems.
Select the remaining elements of your splitter
Technical data
Material
galvanized steelInlet
82,8x250mm
Connection
6xØ75+160Connections
6xØ75mm
Height/Width/Length
83x250x320mm
