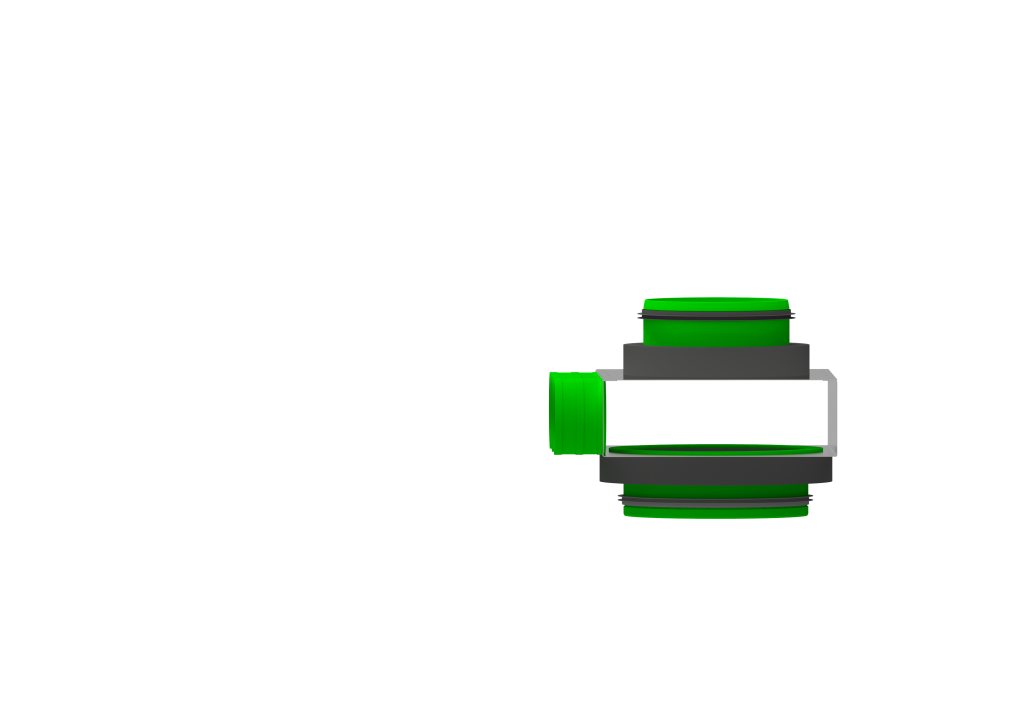

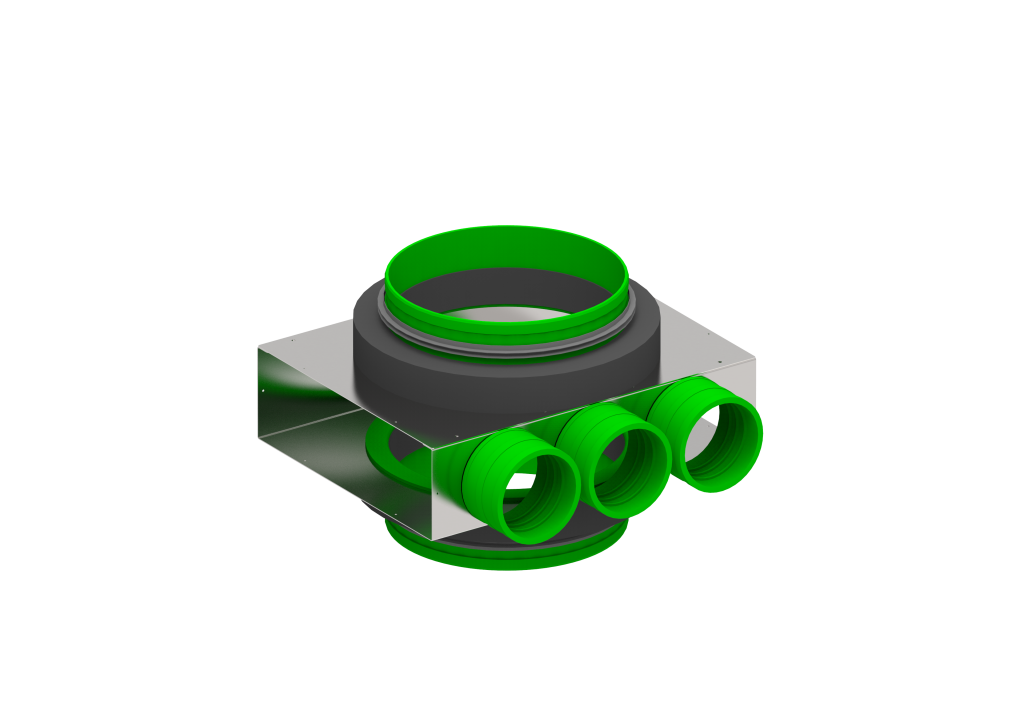

Through connection 3xØ75+Ø160/Ø200
The 3xØ75 + Ø160/Ø200 through connection made of galvanized steel is a practical and functional solution enabling the simultaneous installation of a manifold and reduction of the duct diameter.
galvanized steel
80x250
3xØ75+Ø160/Ø200
83x250x321
Simplicity and speed of installation
The 3xØ75 + Ø160/Ø200 through-connector, made of galvanized steel, is a practical and functional solution that allows for the simultaneous installation of a manifold and a reduction of the duct diameter. This simplifies installation, reduces the number of system components, and lowers installation costs.
Product features:
The connectors are made of plastic with sound-dampening properties, which reduce the transmission of vibrations and noise, and the ring is made of a synthetic rubber mat, which eliminates thermal breaks and improves the acoustics of the entire system. This ensures high user comfort and stable operating parameters.
Application:
The box’s design allows for the installation of two distributors on a single riser, significantly speeding up the installer’s work and shortening the installation time. Three flexible rubber connectors with triple lips guarantee complete sealing of the connections.
Select the remaining elements of your splitter
Technical data
Material
galvanized steelInlet
80x250mm
Connection
3xØ75+Ø160/Ø200mm
Height/Width/Length
80x250x321mm
