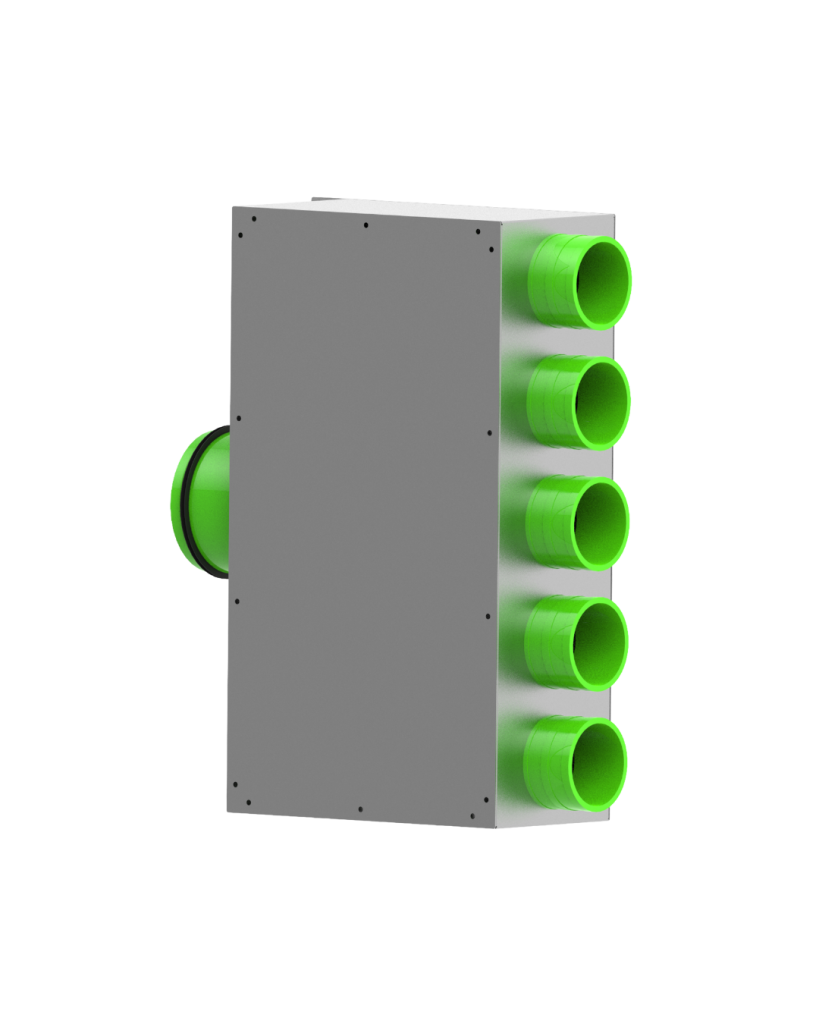

Insulated manifold 5xØ75/125
This high-quality, insulated 5×Ø75/Ø125 air manifold is made of 0.7 mm thick galvanized steel, ensuring durability, rigidity, and complete corrosion resistance. Equipped with practical mounting brackets, it allows for convenient wall, ceiling, or sub-ceiling mounting, providing great installation flexibility.
galvanized steel
5xØ75, 1xØ125, insulated, width 500, length 300, height: 150
150 m3/h
High quality and ease of installation
This high-quality air distributor is made of 0.7 mm thick galvanized steel, ensuring durability, rigidity, and complete corrosion resistance. Equipped with practical mounting brackets, it allows for convenient wall, ceiling, or sub-ceiling mounting, providing great installation flexibility.
Key Features and Technology
The interior of the manifold is fully insulated with a 19 mm thick synthetic rubber mat, providing excellent thermal and acoustic insulation, significantly reducing noise and energy losses.
The Ø75 connectors are made of a material with sound-deadening properties and are equipped with three flexible rubber sealing lips. This solution eliminates the need for additional gaskets, while also speeding up and simplifying installation, ensuring a tight and secure connection of the ventilation ducts.
The Ø125 connector is also made of durable plastic and features a rubber mat ring that eliminates thermal breaks and further improves the acoustic performance of the entire system.
The manifold provides a flow rate of up to 150 m³/h, ideal for mechanical ventilation systems based on modern air distribution systems.
Technical parameters:
- Connections: 5×Ø75 mm + 1×Ø125 mm
- Dimensions: width 500 mm, length 300 mm, height 150 mm
- Material: 0.7 mm galvanized steel
- Internal insulation: 19 mm synthetic rubber mat
- Flow rate: up to 420 m³/h
- Mounting: wall, ceiling, under ceiling
Are you interested in the product?
Contact us to learn how to place an order. We’ll also make sure the product is the perfect fit for your situation.
Technical data
Material
stal ocynkowanaDimension
5xØ75, 1xØ125, izolowany, szerokość: 500, długość: 300, wysokość: 150mm
Flow to
150m3/h
