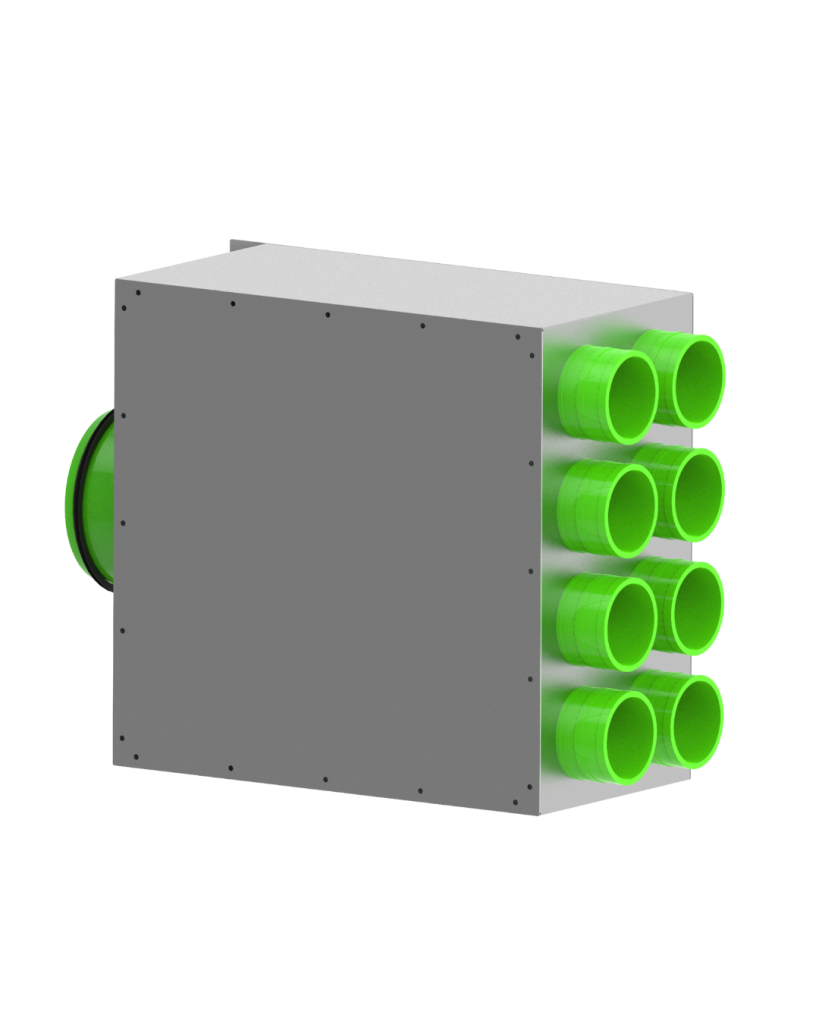

Insulated distributor 8xØ75/160
This high-quality, insulated 8×Ø75/Ø160 air distributor is made of 0.7 mm thick galvanized steel, ensuring durability, rigidity, and complete corrosion resistance. Equipped with practical mounting brackets, it allows for convenient wall, ceiling, or sub-ceiling mounting, providing great installation flexibility.
galvanized steel
5xØ75, 1xØ125
500 mm
300 mm
150 mm
150 m3/h
High quality and ease of installation
This high-quality air distributor is made of 0.7 mm thick galvanized steel, ensuring durability, rigidity, and complete corrosion resistance. Equipped with practical mounting brackets, it allows for convenient wall, ceiling, or sub-ceiling mounting, providing great installation flexibility.
Key Features and Technology
The interior of the manifold is fully insulated with a 19 mm thick synthetic rubber mat, providing excellent thermal and acoustic insulation, significantly reducing noise and energy losses.
The Ø75 connectors are made of a material with sound-deadening properties and are equipped with three flexible rubber sealing lips. This solution eliminates the need for additional gaskets, while also speeding up and simplifying installation, ensuring a tight and secure connection of the ventilation ducts.
The Ø160 connector is also made of durable plastic and features a rubber mat ring that eliminates thermal breaks and further improves the acoustic performance of the entire system.
The manifold provides a flow rate of up to 420 m³/h, ideal for mechanical ventilation systems based on modern air distribution systems.
Technical parameters:
- Connections: 8×Ø75 mm + 1×Ø160 mm
- Dimensions: width 500 mm, length 715 mm, height 220 mm
- Material: 0.7 mm galvanized steel
- Internal insulation: 19 mm synthetic rubber mat
- Flow rate: up to 420 m³/h
- Mounting: wall, ceiling, under ceiling
Are you interested in the product?
Contact us to learn how to place an order. We’ll also make sure the product is the perfect fit for your situation.
Technical data
Material
galvanized steelDimension
8xØ75 1xØ160, insulated, width 450, length 450, height: 190mm
Flow to
240m3/h
